Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop

Name: Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop
Brand: Glare-LED
Price: 1 USD

Application : LED Lane Control/Message

Type : LED

Color : R: 620 to 630nm G : 500 to 530nm Y : 585 to 595nm, R: 620 to 630nm G : 500 to 530nm Y : 585 to 595nm

Panel Size : 40*400/600*600, 40*400/600*600

Supplier Type : Original manufacturer

Media Available : datasheet, Photo

Place of Origin : Guangdong, China

Model Number : GLG-LCS-600/400A

Brand Name : Glare-LED

use : LED Lane Control/Message

Pixel Pitch : Other, Other

Specification : 400*400, 600*600

HS Code : 8531200000

Resolution : 400*400/600*600

Usage : Outdoor

electrical safty : HD 60364-4-443 and HD 638 S1

Product Size : 400*400/600*600

consumption : 30W

Load : En 12899-1 : 2007

Flexure : En 12899-1 : 2007

Visible Flashing Rate : >90Hz

IP Rate : IP65

visual angle : 30°

Price : Negotiable

Contact Now

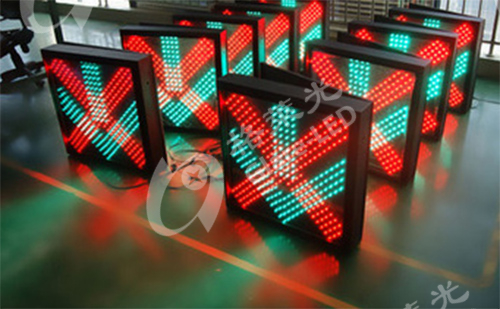

Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop

Products Overview

Toll station lane control signs are usually installed at the entrance of each lane of expressway toll station to indicate the
current status of the lane, which is an important guarantee for the safe passage of expressway. Glare LED toll station lane control signs have high brightness and strong penetration ability, and the prompt content can still be clearly visible in distant
or foggy weather, playing a good warning role; Good reliability, high protection grade, bad weather can still work normally.

Product Features

1, series and parallel process, series and parallel mode, one lamp damage, does not affect the other lamp;
2, the whole plate process, 400*400/600*600 whole plate production process, no joint, good consistency;
3, traffic standards, using traffic green, meet the requirements of traffic display;
4, thin and portable, PCB board, thin and light products;
5, easy to install, cabinets installation methods are optional.

Product Parameter

product size	400400 / 600600
cabinet material	Aluminum or iron
load	EN 12899-1 : 2007
flexure	EN 12899-1 : 2007
impact force	passed
vibratory force	passed
passive safety	EN12767
brightness	R ≥3100 cd/m² G ≥3700 cd/m² Y ≥7400 cd/m²
brightness ratio	R ≥4.2 G ≥5 Y ≥10
color	R : 620 to 630nm G : 500 to 530nm Y : 585 to 595nm
visual angle	30°
homogeneity	Uniformity
Visible flashing rate	≥90Hz
input voltage	230Vac±15%, 50Hz
electrical safty	HD 60364-4-443 and HD 638 S1
consumption	30W
operating temperature	-25ºC to +60ºC
operating humidity	Up to 95%
IP rate	IP65
anti-corrosion	D3, D4
conduction	EN50293
radiation	EN50293
interface	RS232, RS485, Ethernet, GPRS, 3G
brightness control	256 level automatic adjustment
LED Single point detection	Open circuit and short circuit
sensor	Temperature sensor, humidity sensor

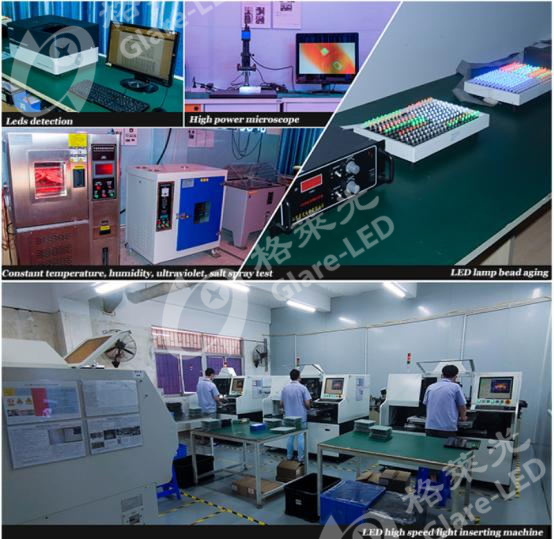

Quality Control Process

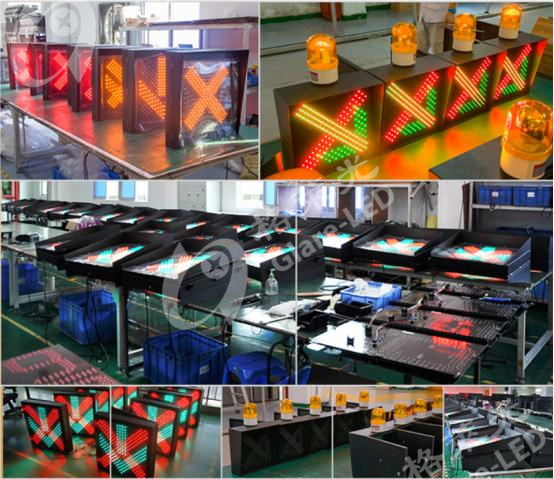

Mass production

Company Profile

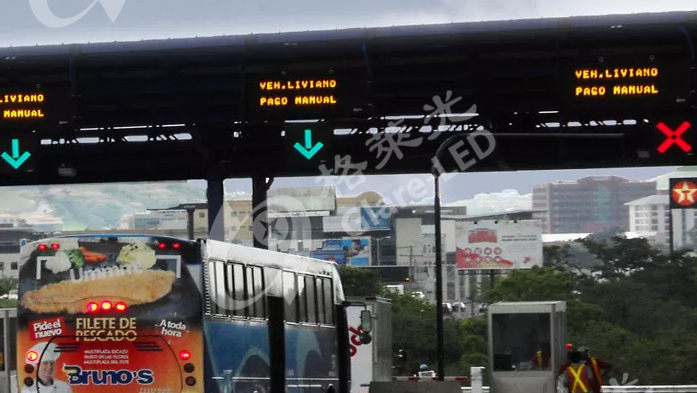

Project Case

Used mainly in highway expressway toll stations.

FAQ

Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets. no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years. Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 1oyear experience, and almost 3oR&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.
